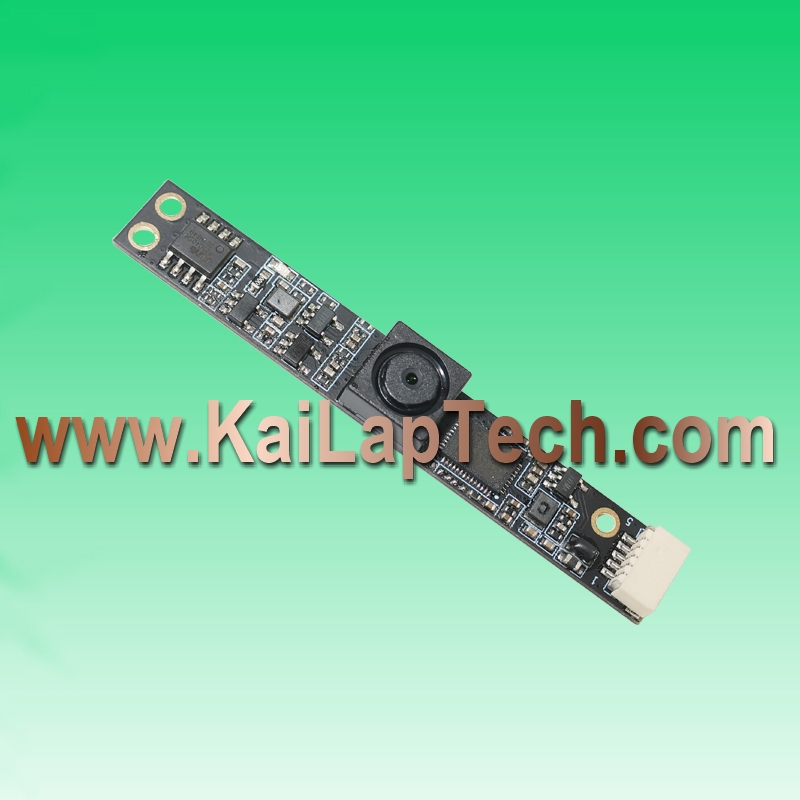

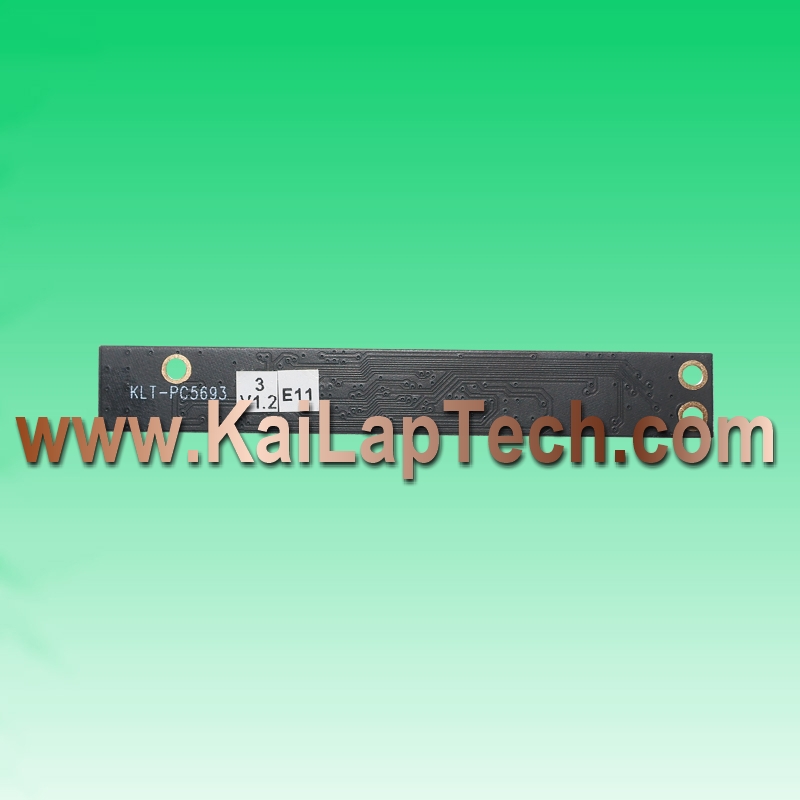

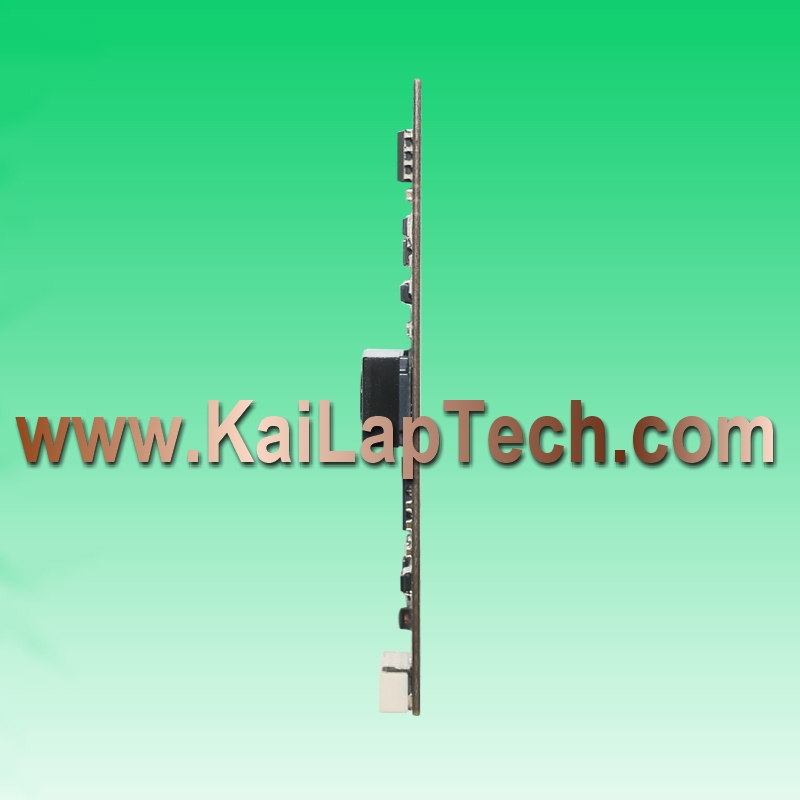

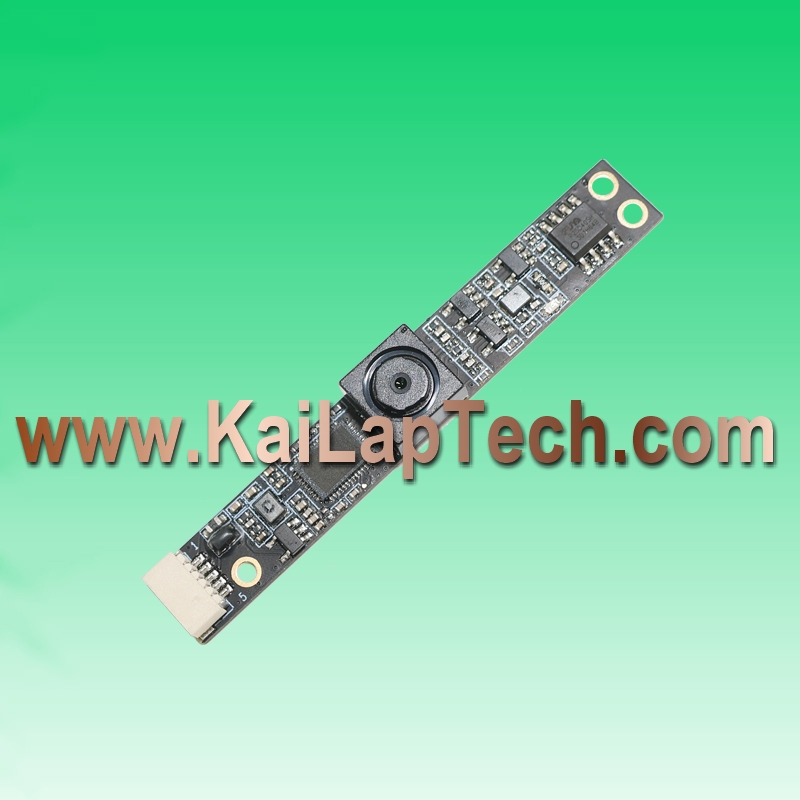

5MP OmniVision OV5693 Fixed Focus 3cm Focus Distance USB 2.0 Camera Module
|
|
Model No. KLT-PC5693 V1.2_F3
|
| Camera Module No. |
KLT-PC5693 V1.2_F3 |
| Resolution |
5MP |
| Image Sensor |
OV5693 |
| Sensor Type |
1/4" |
| Pixel Size |
1.4 um x 1.4 um |
| EFL |
3.20 mm |
| F.NO |
2.80 |
| Pixel |
2592 x 1944 |
| View Angle |
70.0°(DFOV) 58.6°(HFOV) 45.3°(VFOV) |
| Lens Dimensions |
8.50 x 8.50 x 5.60 mm |
| Module Type |
Fixed Focus with 3cm Focus Distance |
| Interface |
USB 2.0 |
| Output Format |
MJPG / YUV2 |
| Auto Control |
Saturation, Contrast, Acutance
White Balance, Exposure |
| Audio |
None |
| Input Voltage |
DC 5V |
| Working Current |
Max 500mA |
| PCB Size |
60.00 x 8.50 mm |
| System Compatibility |
Windows XP (SP2, SP3), Vista, 7, 8, 10, 11
Android, Mac OS, Linux or OS with UVC Driver
Raspberry Pi by USB Port |
| Software for USB Camera |
AMCAP, Webcam Viewer, V4L2 Controls
Contacam, VLC Player, MotionEye OS
iSpy, ZoneMider, Yawcam |
| Lens Type |
650nm IR Cut |
| Operating Temperature |
-30°C to +70°C |
| USB Cable |
USB Cable |
|
